JUNLEI 3015

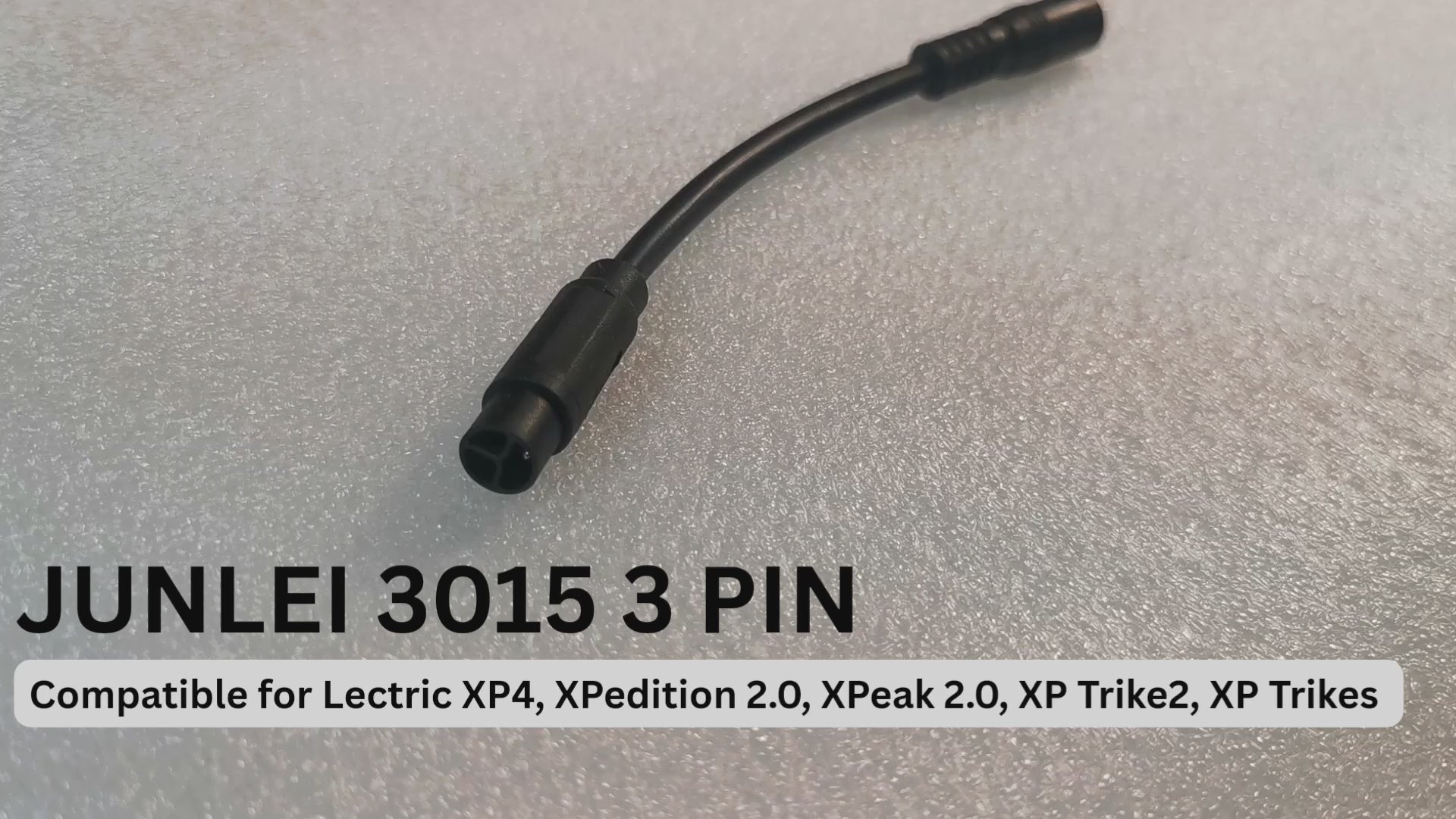

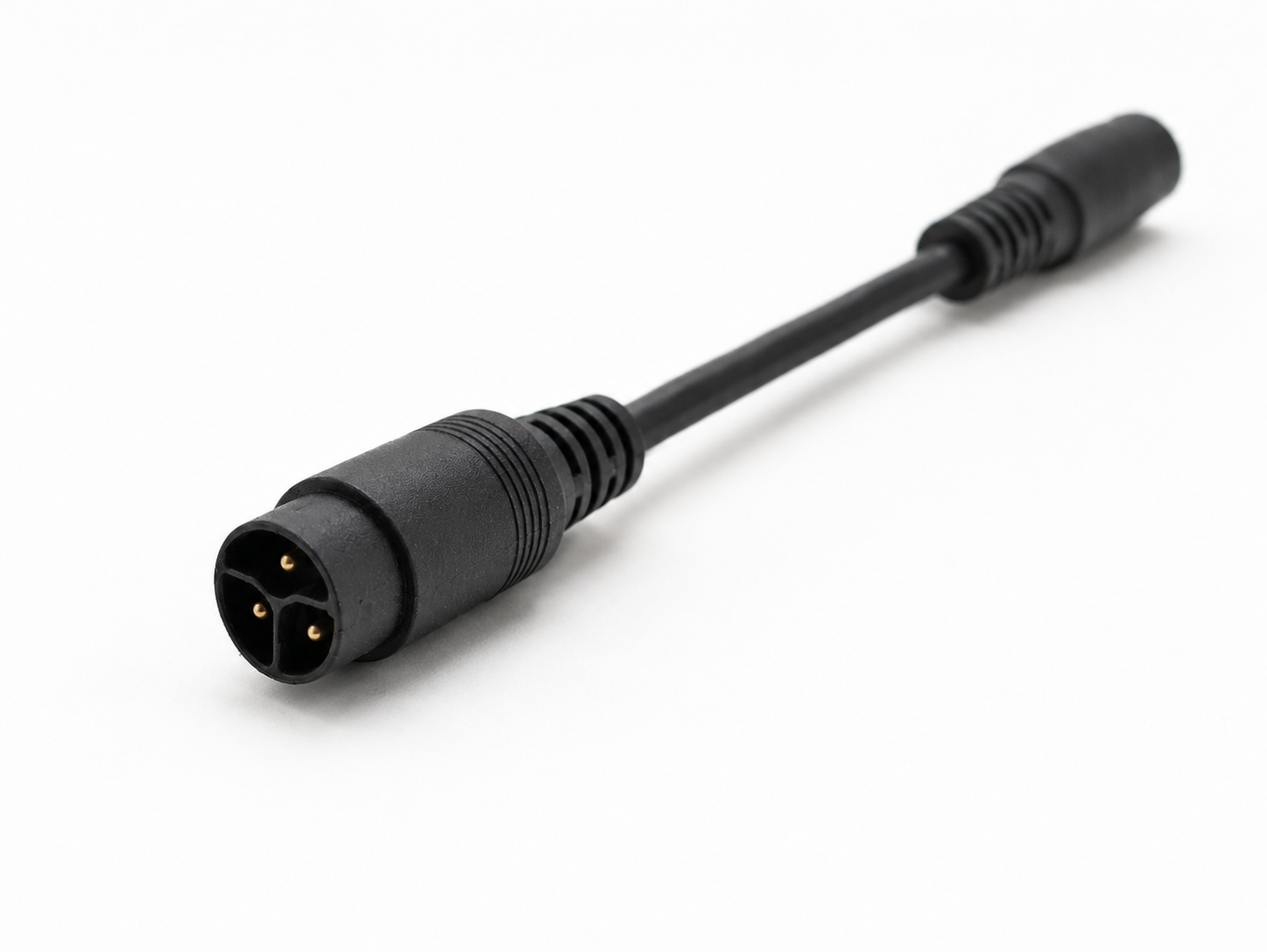

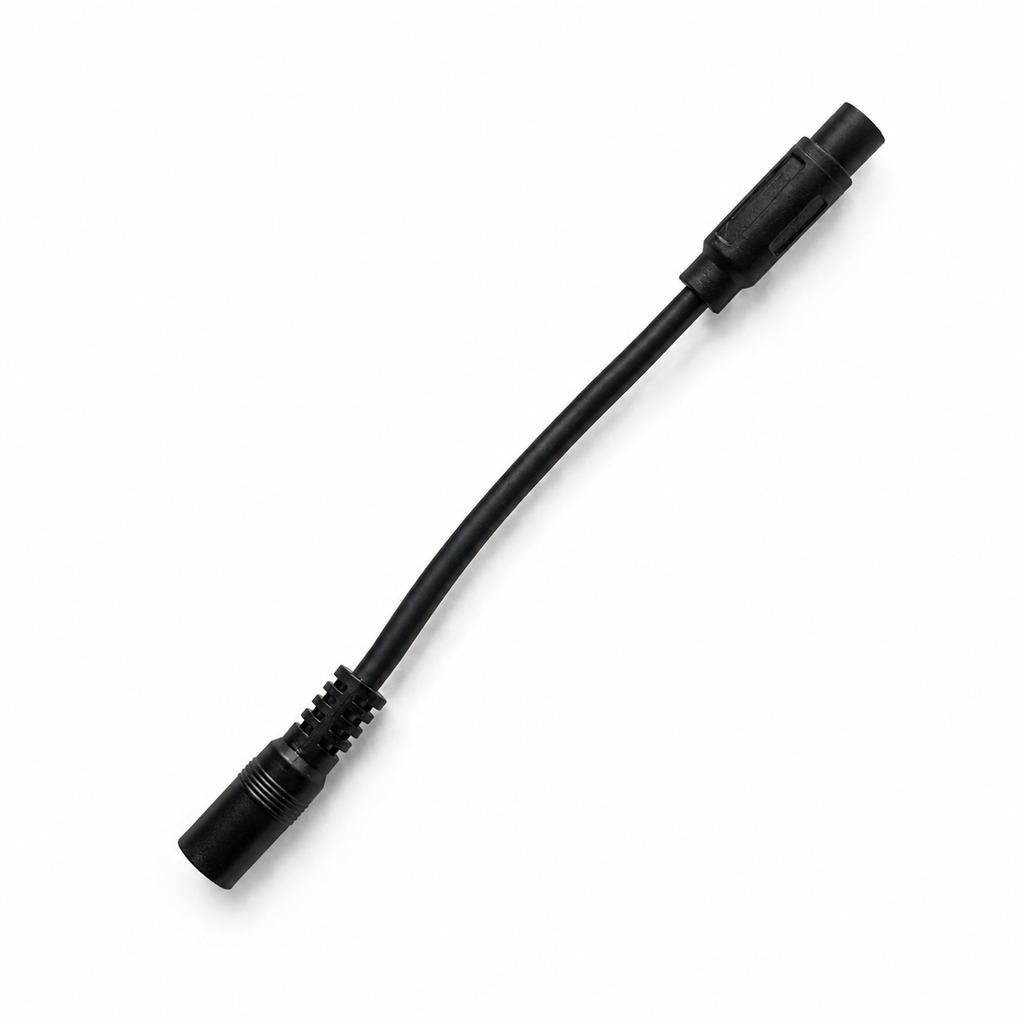

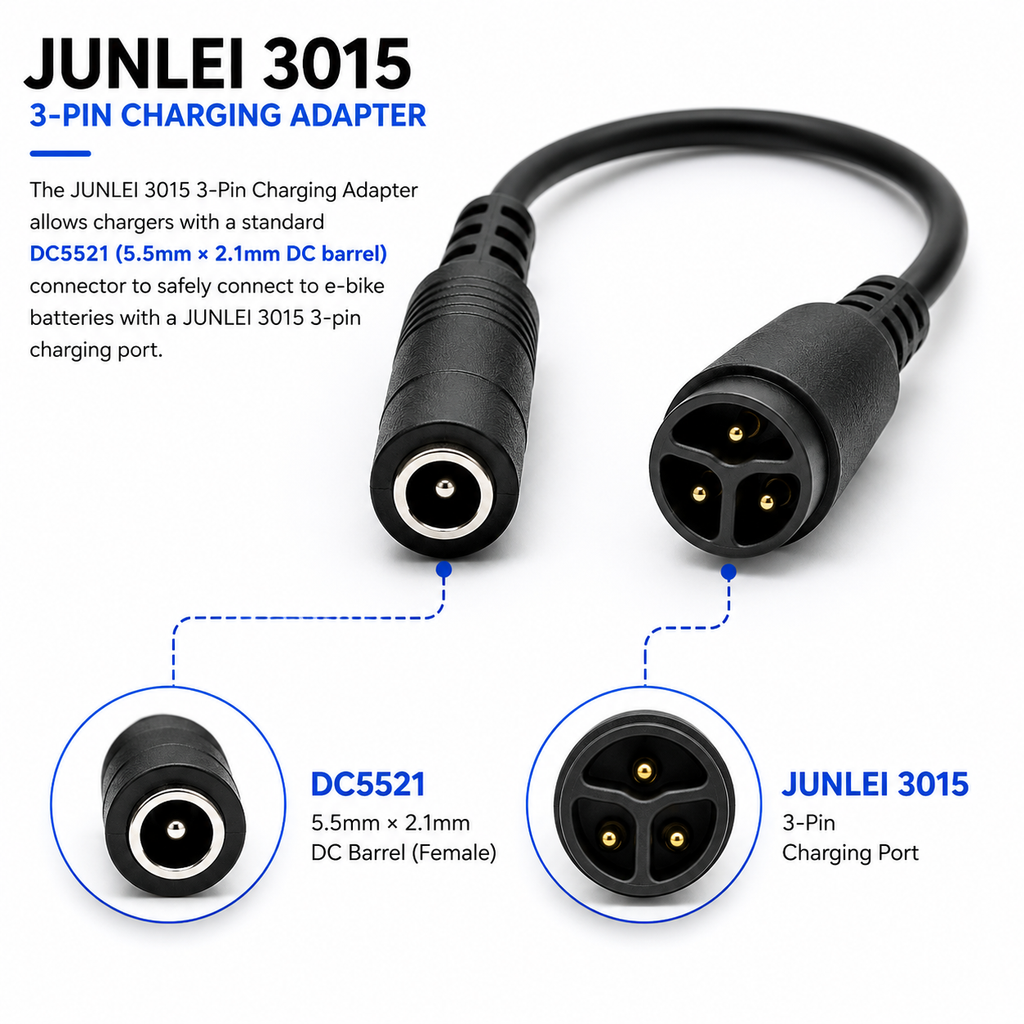

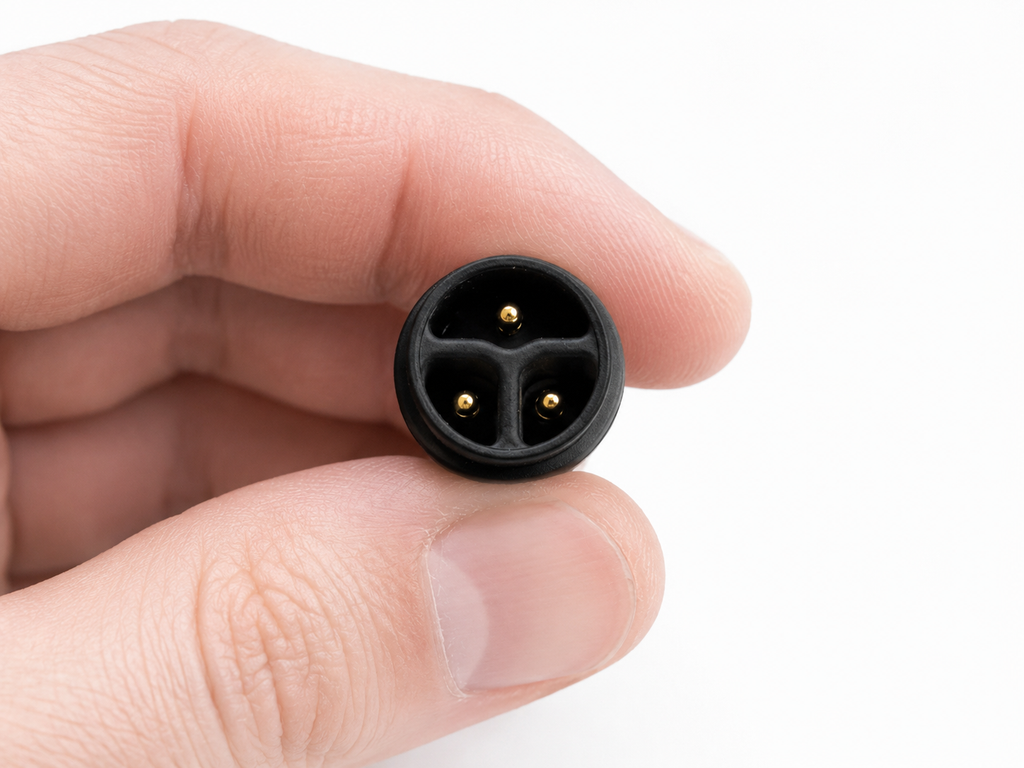

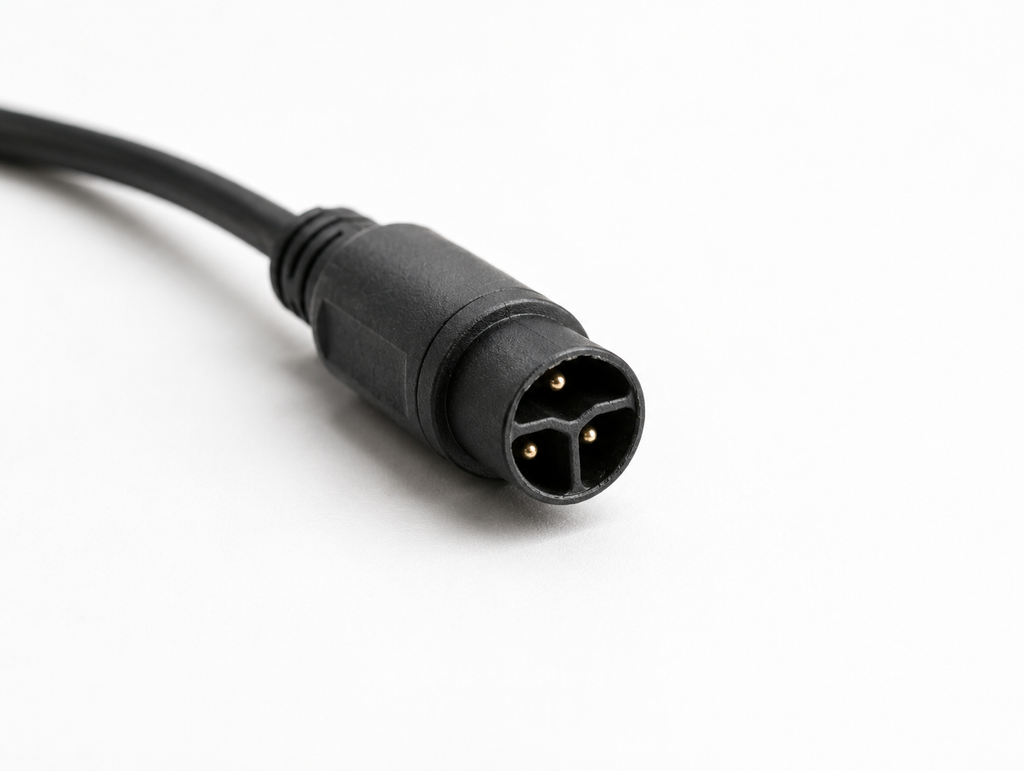

The JUNLEI 3015 3-Pin Charging Adapter allows chargers with a standard DC5521 ( 5.5mm × 2.1mm DC barrel) connector to safely connect to e-bike batteries with a JUNLEI 3015 3-pin charging port.

Compatible with select Lectric ebike models including:

• XP4
• XPedition 2.0
• XPeak 2.0
• XP Trike 2
• XP Trikes

Built with durability and safety in mind, the adapter features an IPX66 waterproof rating, low contact resistance, and over 1,500 insertion cycles for long-term use in daily riding conditions.

Recommended use:

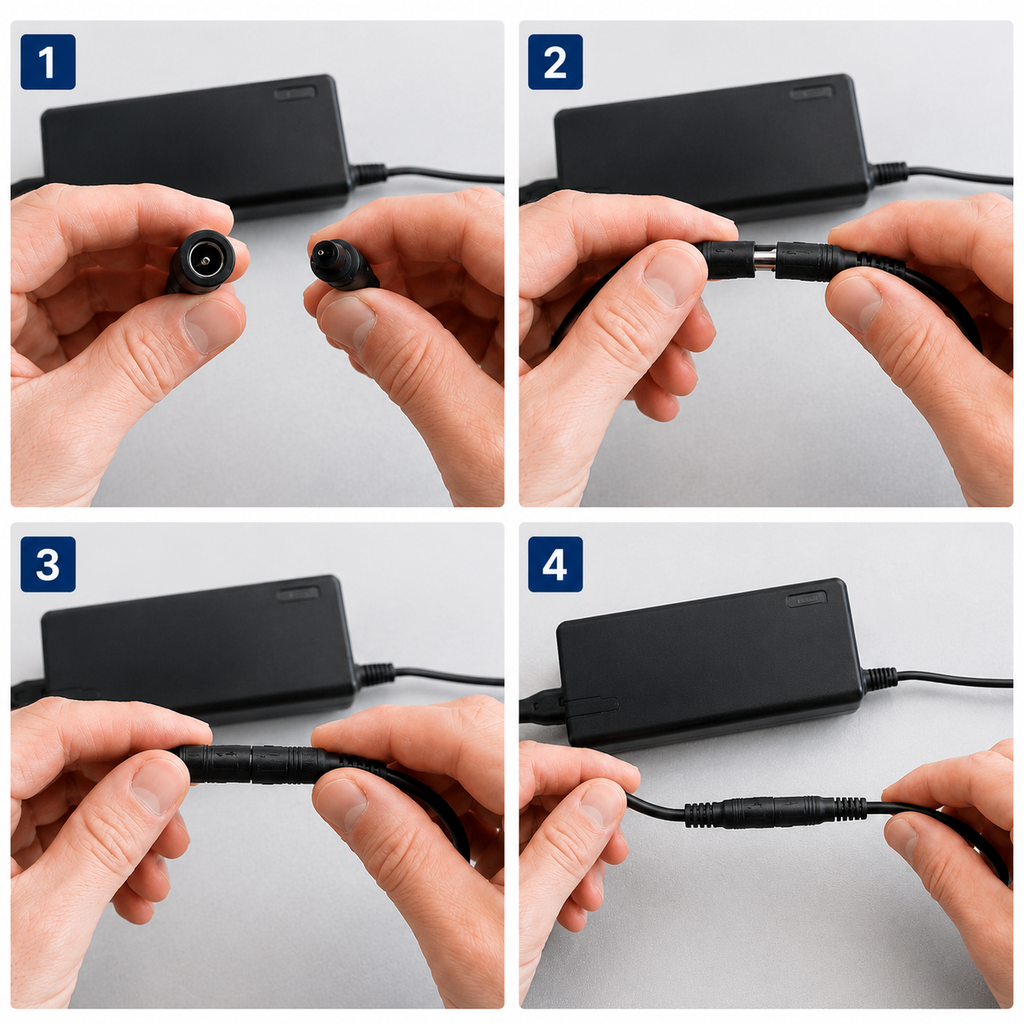

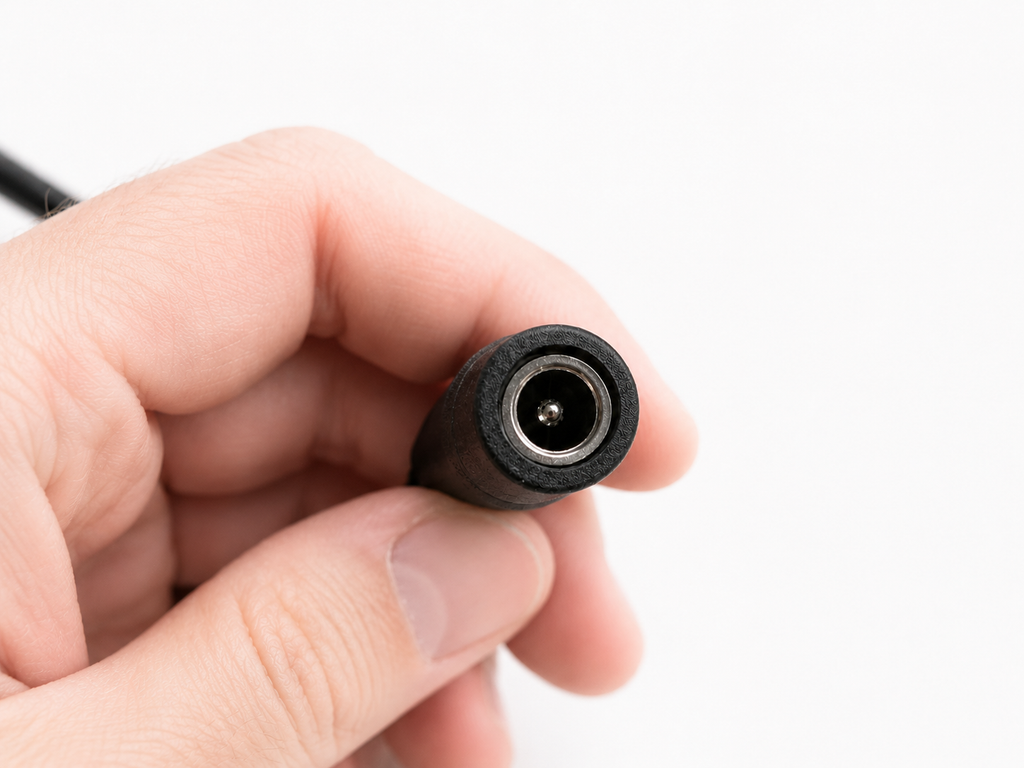

Designed to work with standard e-bike chargers featuring a DC5521 (5.5mm × 2.1mm) DC barrel connector — the most widely used charging plug format for e-bike chargers and power adapters.

Technical Specifications

• Operating Temperature: -25°C to 85°C
• Rated Voltage: 60V
• Rated Current: 8A
• Durability: >1,500 cycles

• Waterproof Rating: IPX66
